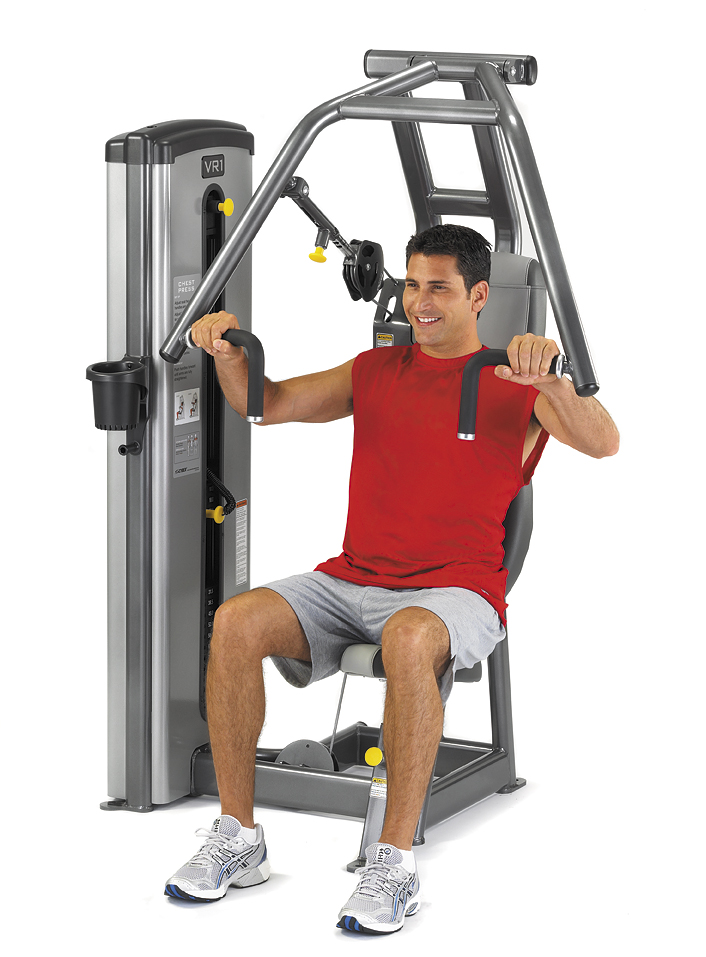

VR1 CHEST PRESS 13000

- The VR1 dependent motion offers a feeling of
  security to new and average users. By having
  both arms working together in a fixed plane,
  the chest press exercise feels better controlled
  for a comfortable and secure training
  movement.
- The overhead pivot provides a natural path
  of motion (barbell path of motion). This is in
  contrast to the less natural and less
  effective descending path of many other
  chest presses on the market.
- Dual grips provide a barbell grip to
  emphasize the chest or a vertical grip to
  emphasize the anterior deltoid.
- The barbell grips are angled to provide a
  neutral wrist position.
- Available with gas spring assisted seat.
- Light stack 150LBs (68KG)
- Standard stack 220LBs (100KG)
- Dimension: 35”L X 52”W X 68”H

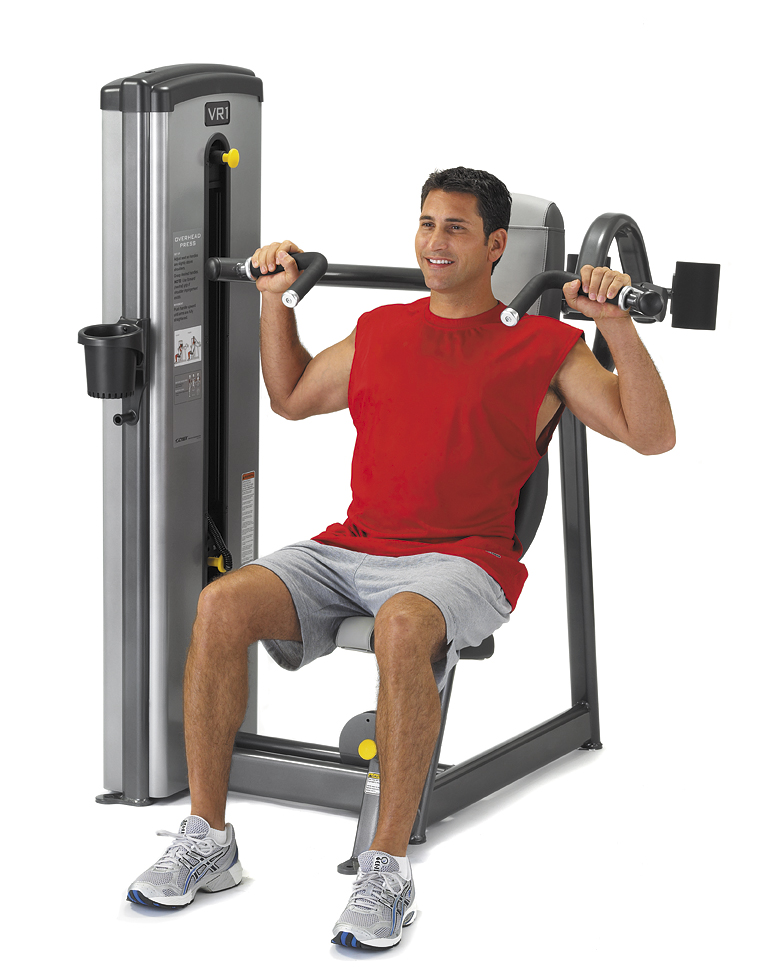

VR1 Overhead Press 13010

- The VR1 dependent motion offers a feeling of
   security to new and average users. By having
   both arms working together in a fixed plane,
   the chest press exercise feels better
   controlled for a comfortable and secure
   training movement.
- Seat height adjusts for user height which
  allows taller users a wider grip. The seat
  adjustment also ensures that the preset
  range of motion is never exceeded.
- Dual grips provide a barbell grip as well as
  neutral grip favorable for individuals with
  compromised shoulders. The grips are
  angled to provide a neutral wrist position.
- Available with gas spring assisted seat.
- Light stack 130LBs (59KG)
- Standard stack 190LBs (86KG)
- Dimension: 57”L X 51”W X 62”H

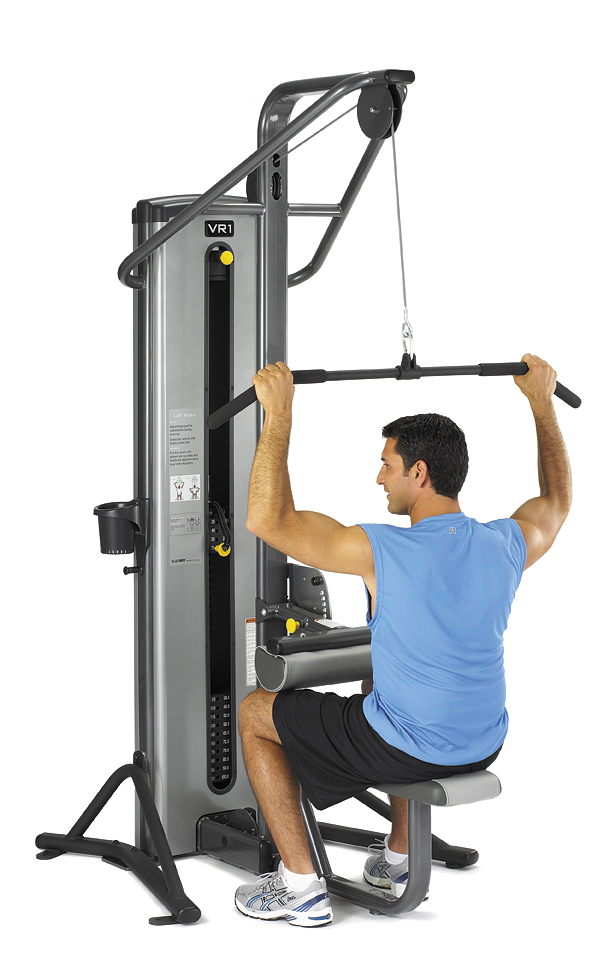

VR1 Lat Pull 13130

- The pulley has been carefully located at the
   front of the machine which encourages correct
   form for the lat pulldown movement.
- The thigh pad, seat, and chest pad are all
  adjustable to accommmodate users of
  varied height and limb length.
- Light stack 150LBs (68KG)
- Standard stack 220LBs(100KG)
- Dimension: 60”L X 43”W X 89”H

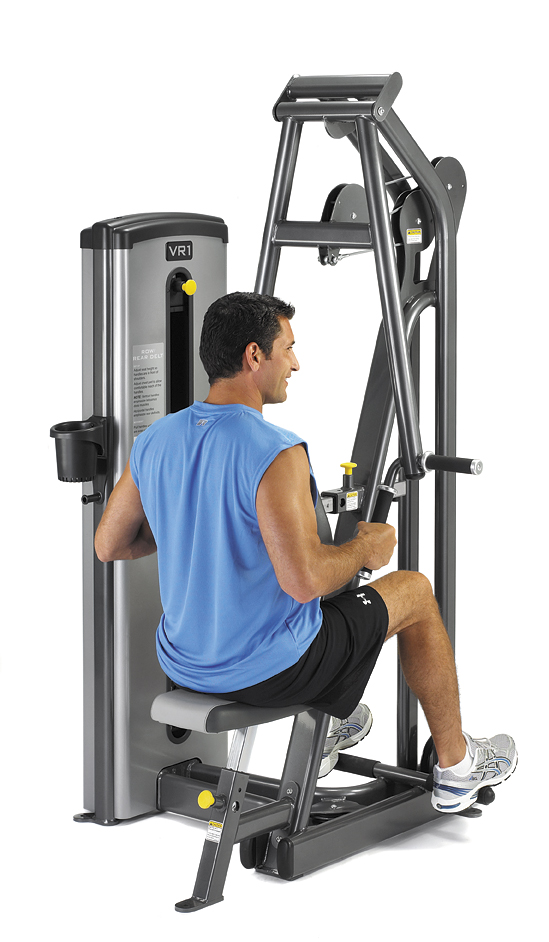

VR1 ROW 13030

- The VR1 dependent motion offers a feeling of
  security to new and average users. By having
  both arms working together in a fixed plane,
  the row exercise feels better controlled for a
  comfortable and secure training movement.
- The VR1 overhead pivot closely matches a
  standard descending path of motion that
  trains either for row or rear delt movements.
- Forward foot bar promotes torso stabilization
  consistent with proper lifting technique.
  Adjustable chest pad provides additional
  stability if desired.
- Available with gas spring assisted seat.
- Light stack 150LBs(68KG)
- Standard stack 220LBs(100KG)
- Dimension: 46”L X 47”W X 76”H

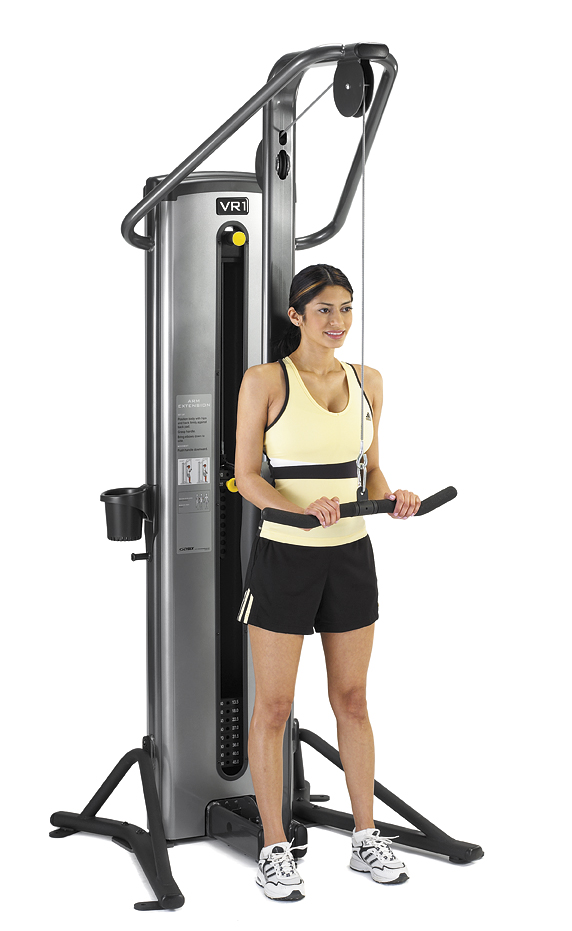

VR1 Arm Extension 13080

- Pushdown positioning eliminates the need for
   adjustments or aligning with axis of rotation.
- Back pad provides position reference and
  support.
- Light stack 100LBs (45KG)
- Standard stack 145LBs (66KG)
- Dimension: 45”L X43”W X89”H

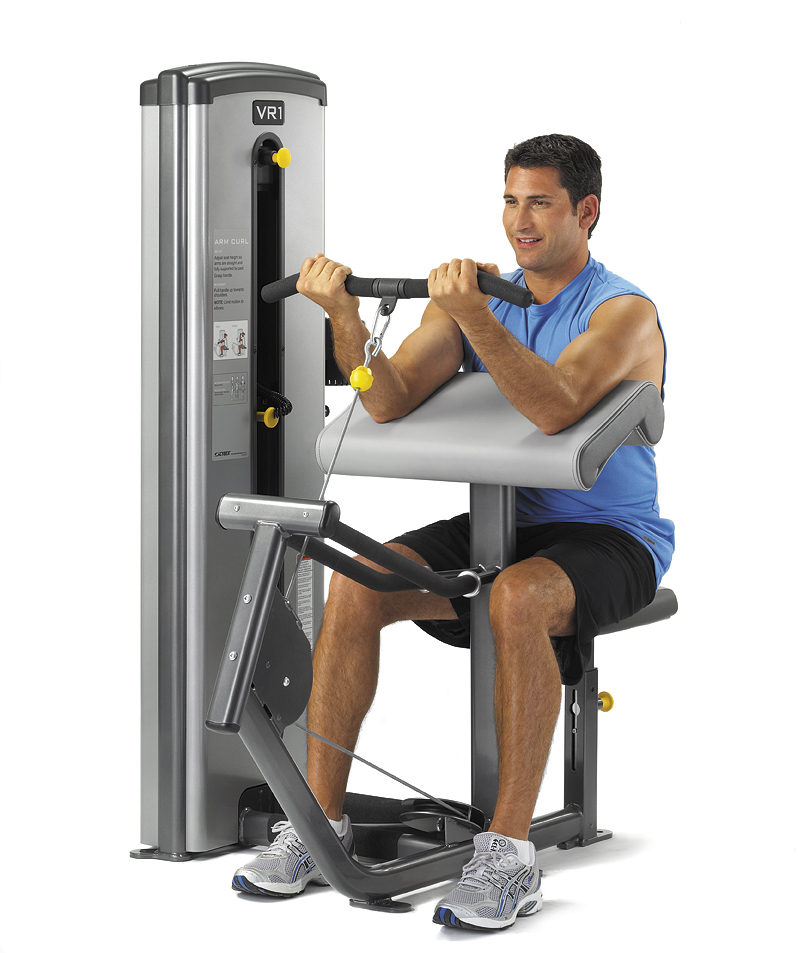

VR1 Arm Curl 13070

- The VR1 cable-based arm curl is an easy
  machine to use - sit down, reach over the
  arm pad, grab the bar, and pull. Because it
  is cable-based, it requires no axis of
  rotation alignment.
- The seat height adjusts for user height which
   puts the shoulder in the proper position relative
   to the pad.
- Rotating cambered handle provides barbell
  and reverse grip positions.
- The large angled pad supports the full length
  of the upper arm to eliminate unwanted
  shoulder movement.
- Available with gas spring assisted seat.
- Light stack 100LBs(45KG)
- Standard stack 145LBs(66KG)
- Dimension: 54”L X 39”W X 62”H

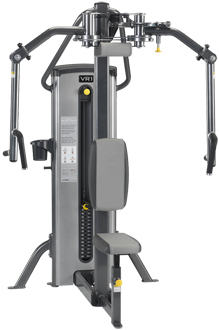

VR1 Fly / Rear Delt 13110

- Synchronized drive provides dependent
  motion and delivers a controlled movement
  with a more secure feeling. The synchonized
  drive also provides for the start position
  adjustment of both arms from a single
  adjustment.
- The floating input arms automatically adjust
  to varying user arm lengths.
- Horizontal and vertical handles provide for
  user variety.
- Available with gas spring assisted seat.
- Light stack 150LBs (68KG)
- Standard stack 220LBs (100KG)
- Dimension: 55”L X 50”W X 74”H

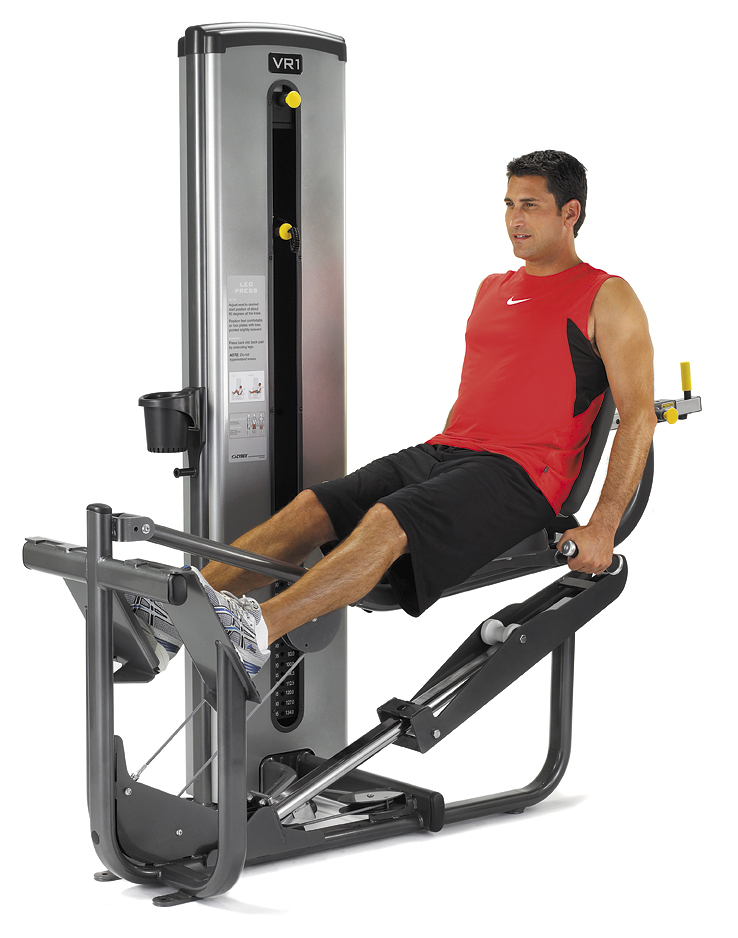

VR1 Leg Press 13040

- The carriage moves backward and tilts at the
  same time which encourages the user to push
  higher on the back. This is a unique Cybex
  patented design with an articulating seat and
  back pad that provide for more complete hip
  extension and gluteal involvement.
- Adjustable seat accommodates a wide range
  of users by adjusting for user height and range
  of motion.
- Light stack 200LBs (91KG)
- Standard stack 295LBs (134KG)
- Dimension: 62”L X 38”W X 77”H

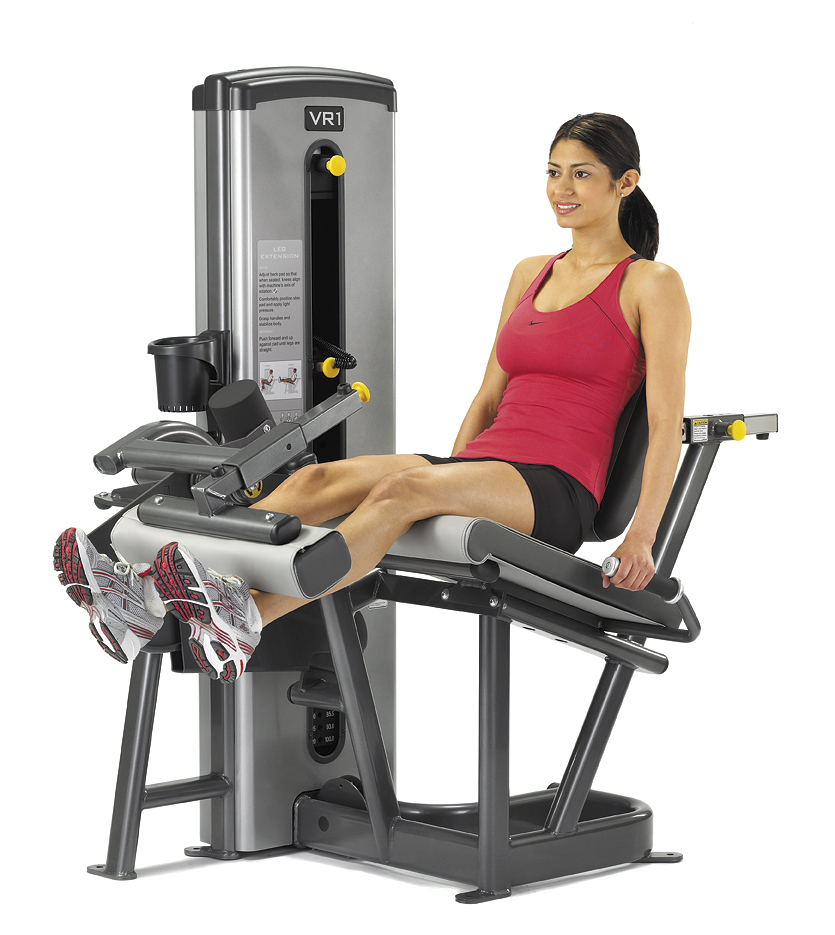

VR1 Leg Extension 13050

         (13051 with adjustable start
           position device)

- Floating leg pad positioning is instinctive for
  user and virtually effortless.
- Offset input arm provides for leg pad
  positioning without affecting the starting angle
  of the knee.
- The 100 degree angle between seat and back
  pad is wider than most leg extension machines
  and is designed to relieve hamstring tension.
- Available with or without adjustable start
  position device.
- Light Stack 150LBs (68KG)
- Standard Stack 220LBs (100KG)
- Dimension: 54”L X 41”W X 62”H

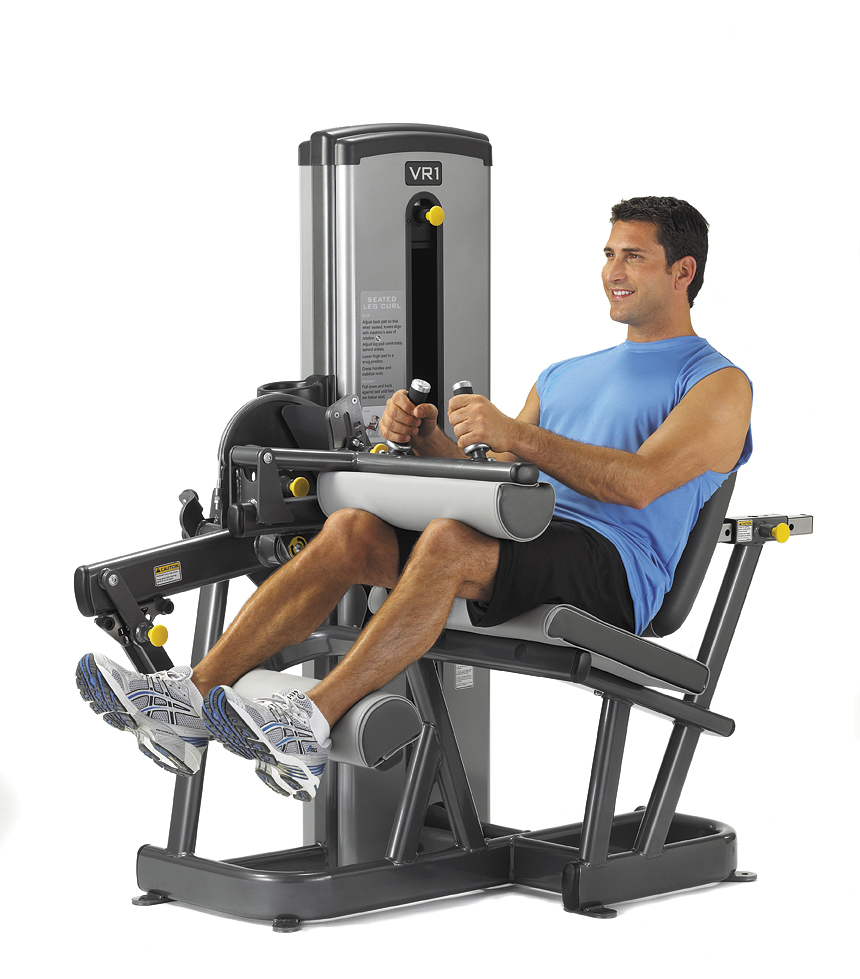

VR1 Seated Leg Curl 13060

　     (13061 with adjustable start             position device)

- Leg pad positioning is instinctive for user and
  virtually effortless
- Leg pad adjusts with minimal effect on the
  starting angle of the knee.
- Back pad is angled at 100∘from seat bottom
  to relieve hamstring tension.
- Easy to adjust thigh pad provides comfortable
  and effective stabilization.
- Light stack 100LBs (45KG)
- Standard stack 145LBs (66KG)
- Dimension: 67”L X 40”W X 62”H

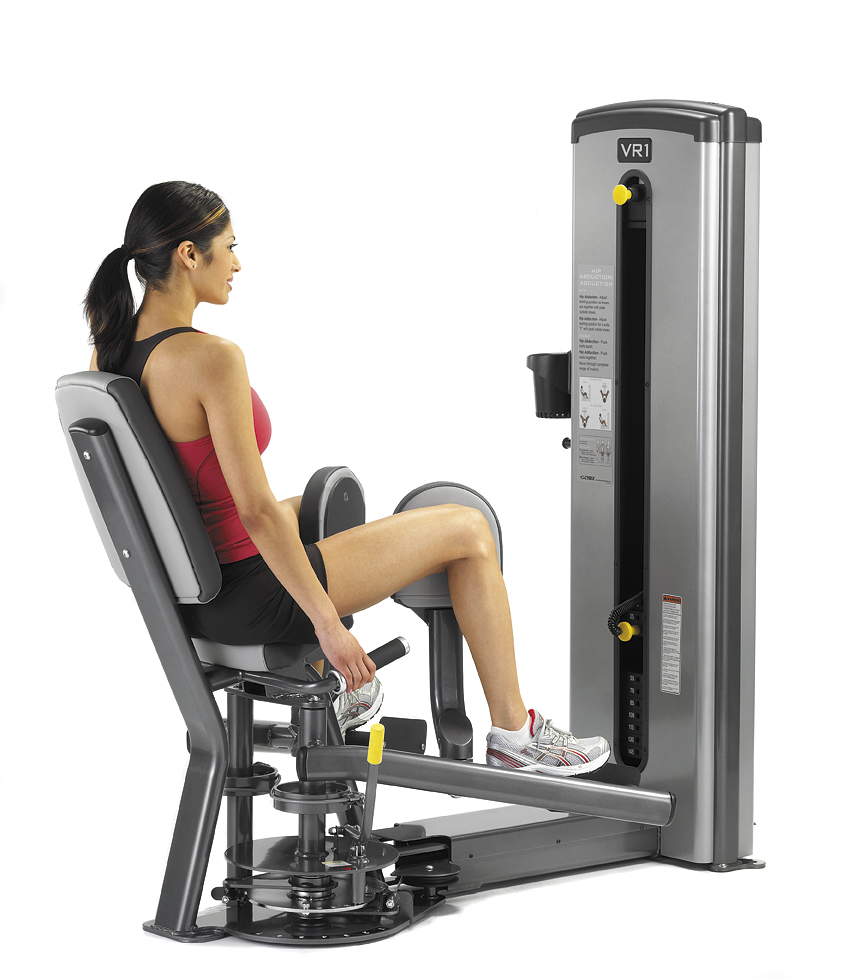

VR1 Hip AB/AD 13180

- Dual function design - both abduction and
  adduction in one machine - saves valuable
  floor space.
- Patent pending "Slack Free Drive System"
  provides immediate engagement.
- Adjustable start position accommodates
  individual range of motion preference.
- Forward Weight Stack serves as a privacy
  shield.
- Light stack 100LBs (45KG)
- Standard stack 145LBs (66KG)
- Dimension: 62”L X 24”W X 62”H

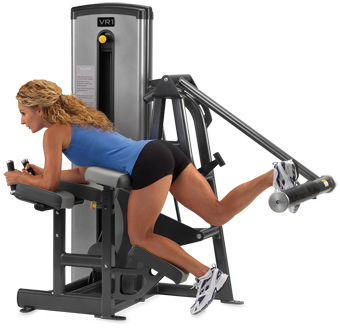

VR1 Glute 13170

- The curvilinear path encourages gluteal
   involvement without requiring the user to align
   the hip joint.
- The adjustable abdominal support aids spinal
  alignment and is available with optional gas
  spring assist.
- The unique counterweight design minimizes
  the footprint while providing an uncluttered look.
- Light stack 150LBs (68KG)
- Standard stack 220LBs (100KG)
- Dimension: 50”L X 40”W X 62”H

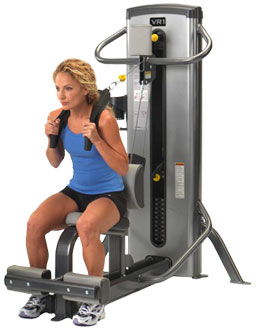

VR1 Abdominal 13090

- The space-efficient design provides a
  crunch-like movement. The padded harness
  grips remove the arms from the movement
  which isolates the abs. It allows a wide
  variety of user sizes to perform correct
  movement without adjustment.
- Contoured lumbar pad promotes training
   through a full range of motion.
- Light stack 130LBs (59KG)
- Standard stack 190LBs (86KG)
- Dimension: 54”L X 29”W X 62”H

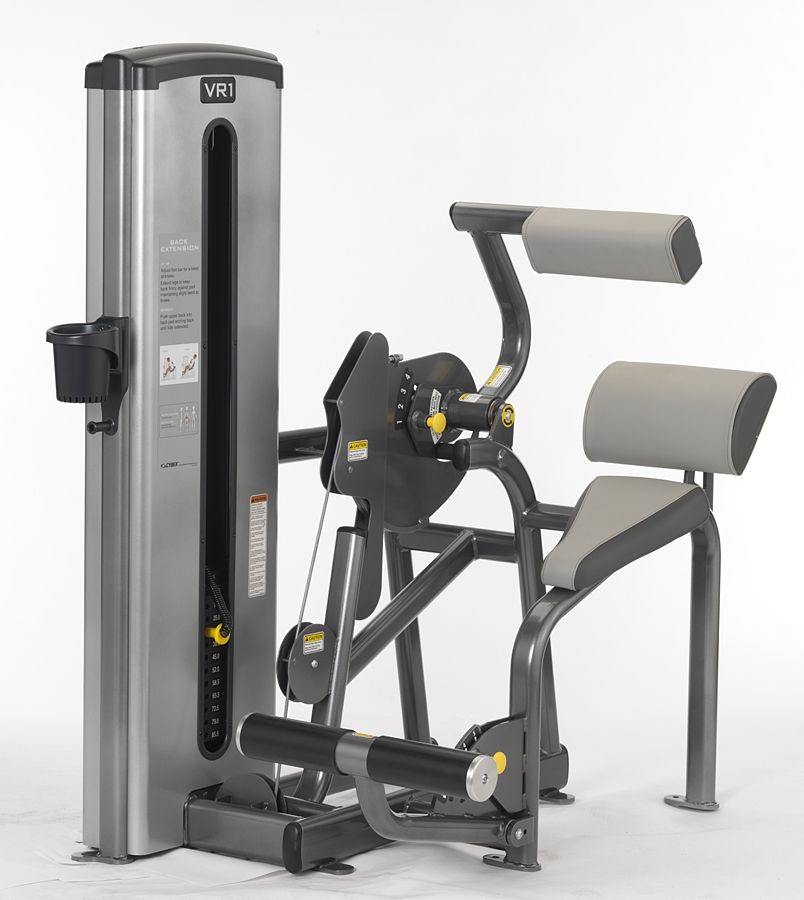

VR1 Back Extension 13100

         (13101 with adjustable start
           position device)

- Patent pending pelvic stabilization system
- Utilizes adjustable foot brace allowing the user
   to “lock into” the hip pad causing hip extensor
   engagement for optimal pelvic stabilization.
- Contoured lumbar pad encourages
   comfortable spinal extension into
   hyperextension while isolating the spinal
   erectors from hip extensors.
- Light stack: 130 LBs (59 KG)
- Standard stack: 190LBs (86KG)
- Dimension: 59”L X 41”W x 62”H

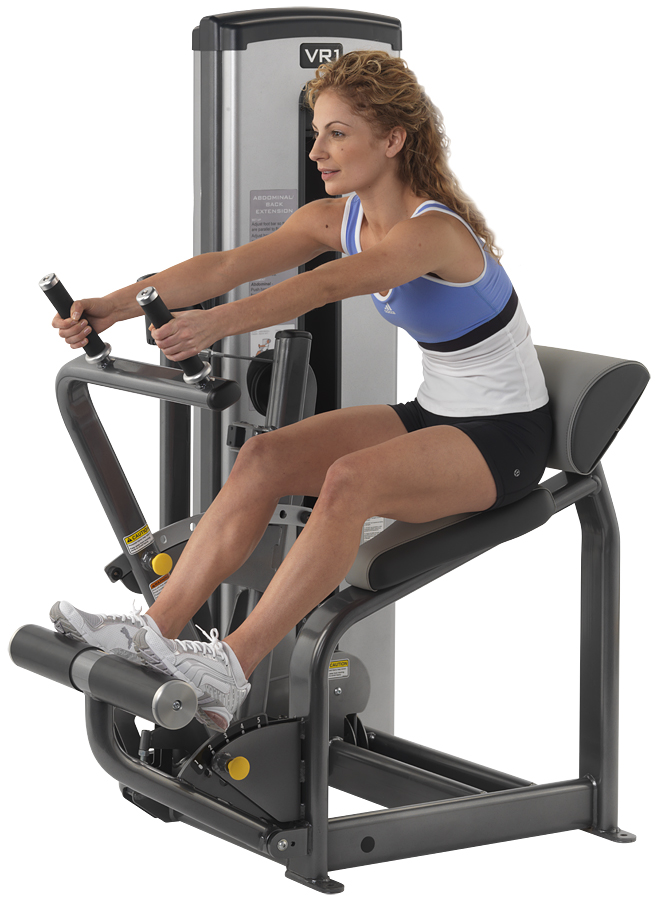

VR1 Abdominal / Back Extension
         13200

- Capitalizing on the effective ab pattern used
   in both CYBEX VR3 and Eagle, the
   Ab/Back Extension dual machine uses the
   same motion in a reverse direction to train
   the lower back.
- Ab Movement - The design has taken hip
    flexors, arms and shoulders out of the
    movement. The resulting exercise is
    completely focused on the abdominal
    muscles. It has to be experienced to be
    appreciated.
- Back Extension Movement - The back
    extension movement loads the spine from the
    shoulder level promoting more complete
    involvement of the back extensors. The design
    also promotes the scapula musculature in
    providing their stabilizing function of the
    shoulder.
- A lumbar curved section of the hip pad
    promotes full range of motion exercise while
    the patent pending stabilization ensures that
    the hips and legs provide optimal stabilization
    which allows the user to focus on the
    exercise.
- Six start positions are adjustable inputs for full
    range of motion.
- Light stack: 130LBs (59KG)
- Standard stack: 190LBs (86KG)
- Dimension: 49”L X 47”W X 62”H

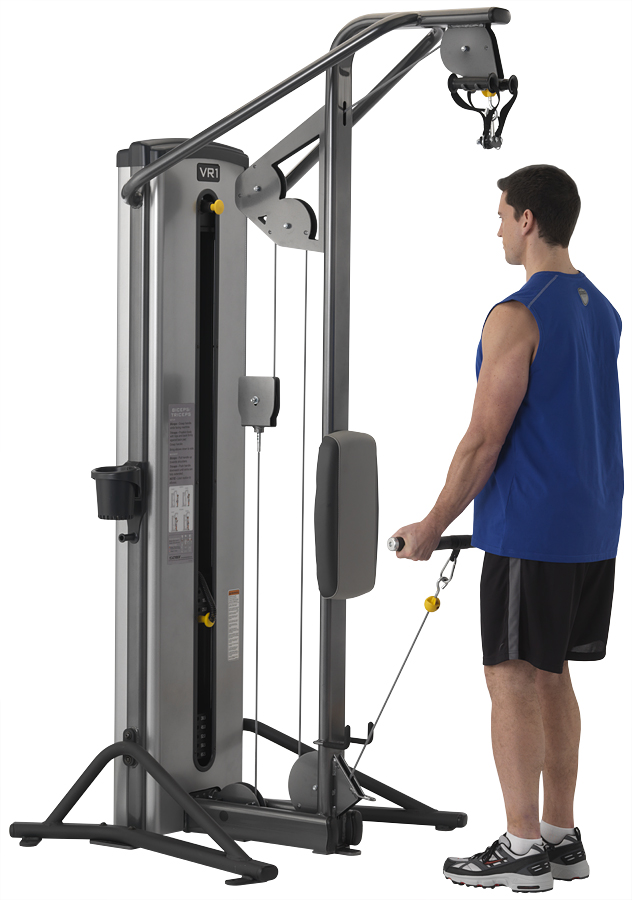

VR1 Biceps / Triceps 13230

- The VR1 Biceps/Triceps is extraordinary in
   its simplicity. While the patterns are
   familiar to anyone who strength trains, it is
   the small details that make the difference.
- The 2:1 reduction system provides for reduced
    weight stack inertia and provides a natural
    feel without a floating feeling.
- The back pad provides for intuitive positioning
   and stabilization when performing arm
   extensions.
- Convenient storage is provided for both the
   rotating, cambered curl bar and the individual
   grips used for arm extension.
- Six start positions are adjustable inputs for full
   range of motion.
- Light stack: 100 lbs. (45 kg)
- Standard stack: 145 lbs. (66 kg)
- Dimension: 52" L x 43" W x 89" H

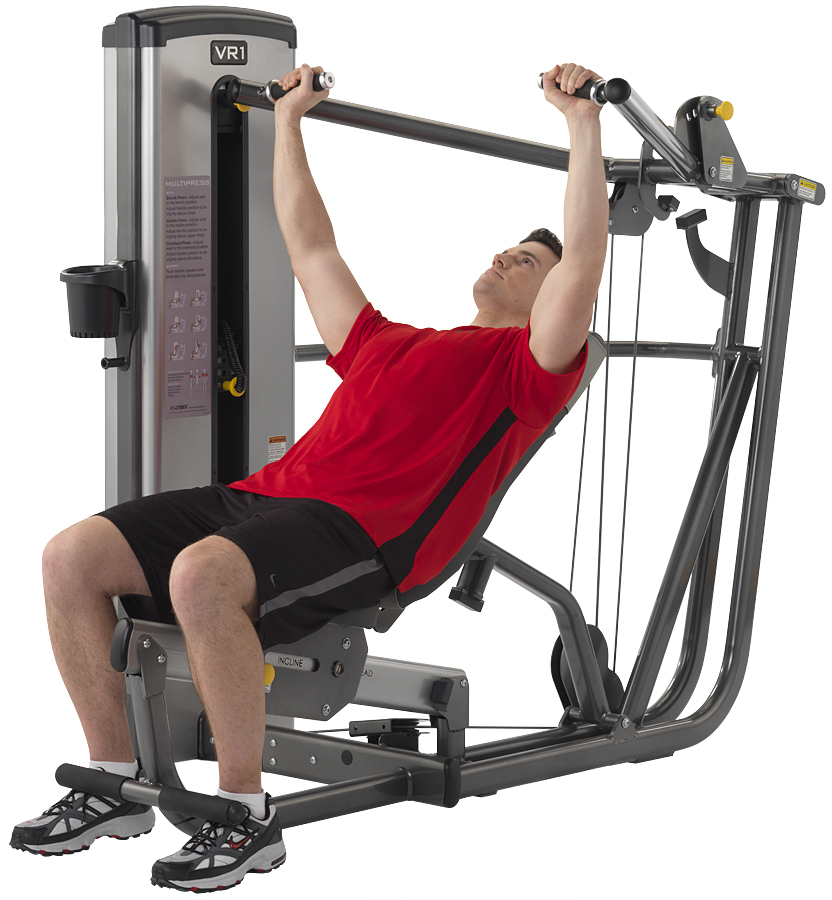

VR1 Multi-Press 13240

- Three In One - The VR1 Multi-Press
   provides a Chest Press, Incline Press, and
   Overhead Press in a single package.
- Simplest Adjustments - The seat assembly
    adjusts by way of a single detent knob and
    provides three position choices in both the
    Overhead and Incline Press Movements.
- Start Positions - To ensure appropriate
    positioning and range of motion, the pressing
    arm includes five start positions.
- Angled Grips - The grips are angled to ensure
    a comfortable neutral wrist position for each
    of the movements.
- Light stack: 150 lbs. (68 kg)
- Standard stack: 220 lbs. (100 kg)
- Dimension: 78" L x 51" W x 62" H

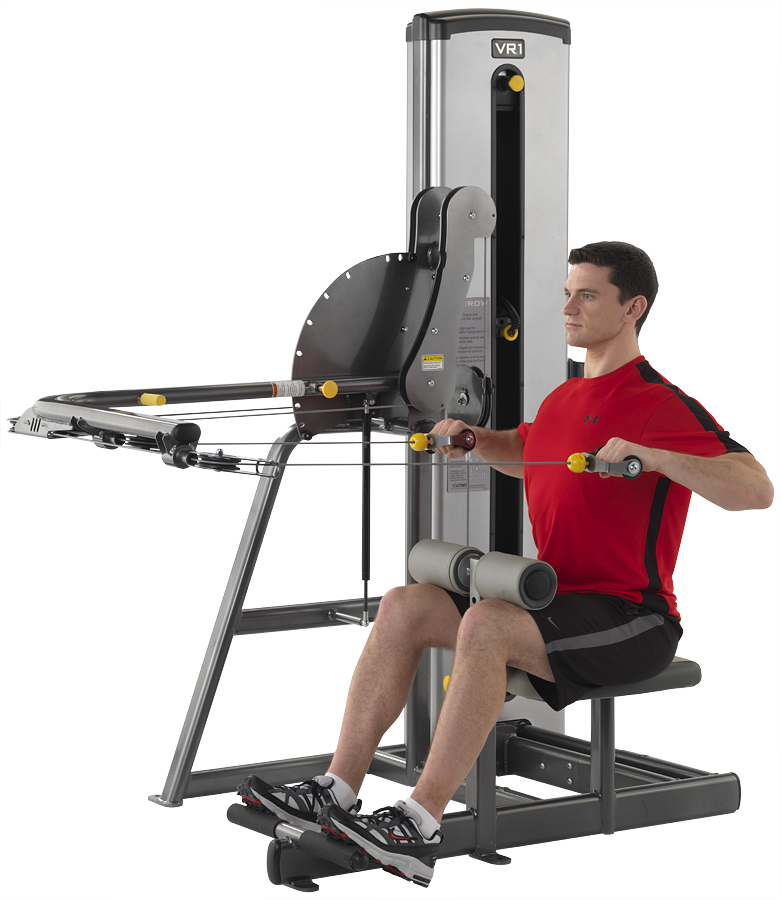

VR1 Lat-Row 13250

- The VR1 Lat-Row goes well beyond what
   other dual Lat-Rows are capable of. The
   unique rotating arm allows the handles to
   be positioned in any one of nine positions
   providing everything from a tradidional Lap
   Pull to a Low Row.
- The dual grips allow for independent exercise
    and the bearing support pulleys track
    effortlessly with the user's motion.
- The adjustable thigh support adjusts for user
    height and provides for stabilization in lat and
    include pull motions, while the foot bar
    provides for stabilization during row
    movements.
- Light stack: 150 lbs. (68 kg)
- Standard stack: 220 lbs. (100 kg)
- Dimension: 73" L x 50" W x 83" H

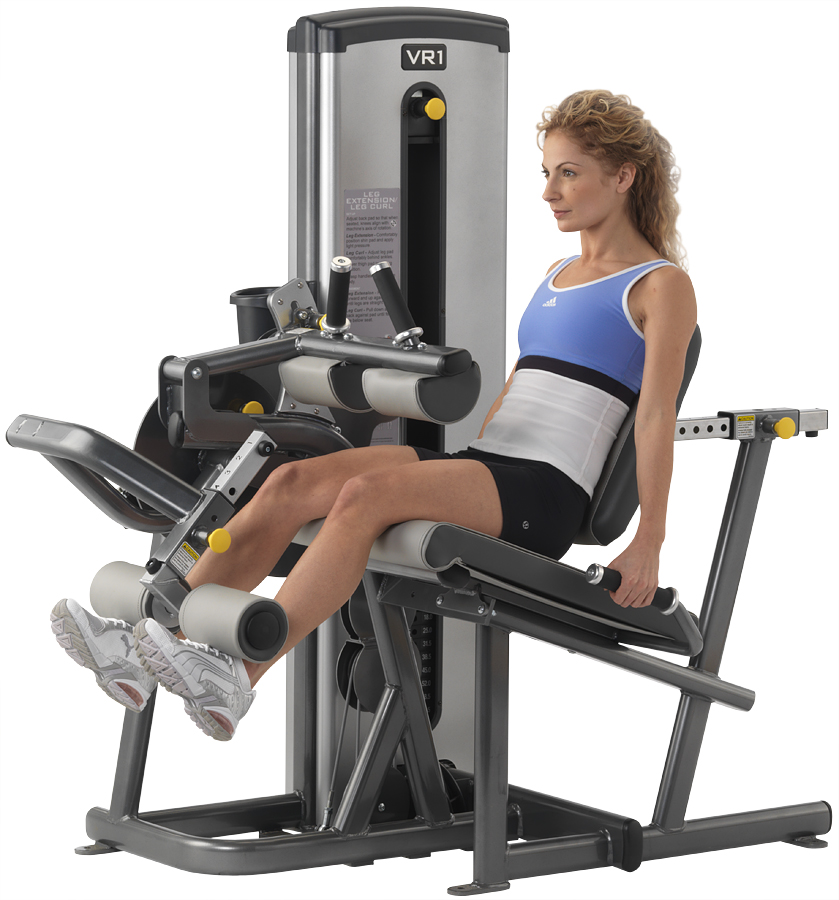

VR1 Leg Extension / Seated Leg
         Curl 13260

- Leg pad positioning is instinctive for the user
   and virtually effortless. Back pad is angled
   100 DEGREES from seat bottom to relieve
   hamstring tension. Thigh hold-down pads
   provide stabilization with less knee shear
   than competitive methods.
- Seven start positions provide for the ultimate in
   start position selection.
- Light stack: 100 lbs. (45 kg)
- Standard stack: 145 lbs. (66 kg)
- Dimension: 66" L x 41" W x 62" H
